Dimensions
Width: 25.6" (65.0 cm)Height: 19.1" (48.5 cm)Depth: 29.3" (74.4 cm)
Shipping Dimensions
Width: 27" (68.6 cm)Height: 4.7" (11.9 cm)Depth: 15.2" (38.6 cm)
Weight
18.70 lbs (8.5 kg))
Key Features:
- Supports 88 Pounds
- Simple Corner Installation
- Telescoping Arm
- Swivels Left and Right
- 16 Degrees of Tilt
Supports 88 Pounds
Constructed out of solid steel, the FMC1 safely supports up to 88 pounds (40 kg).

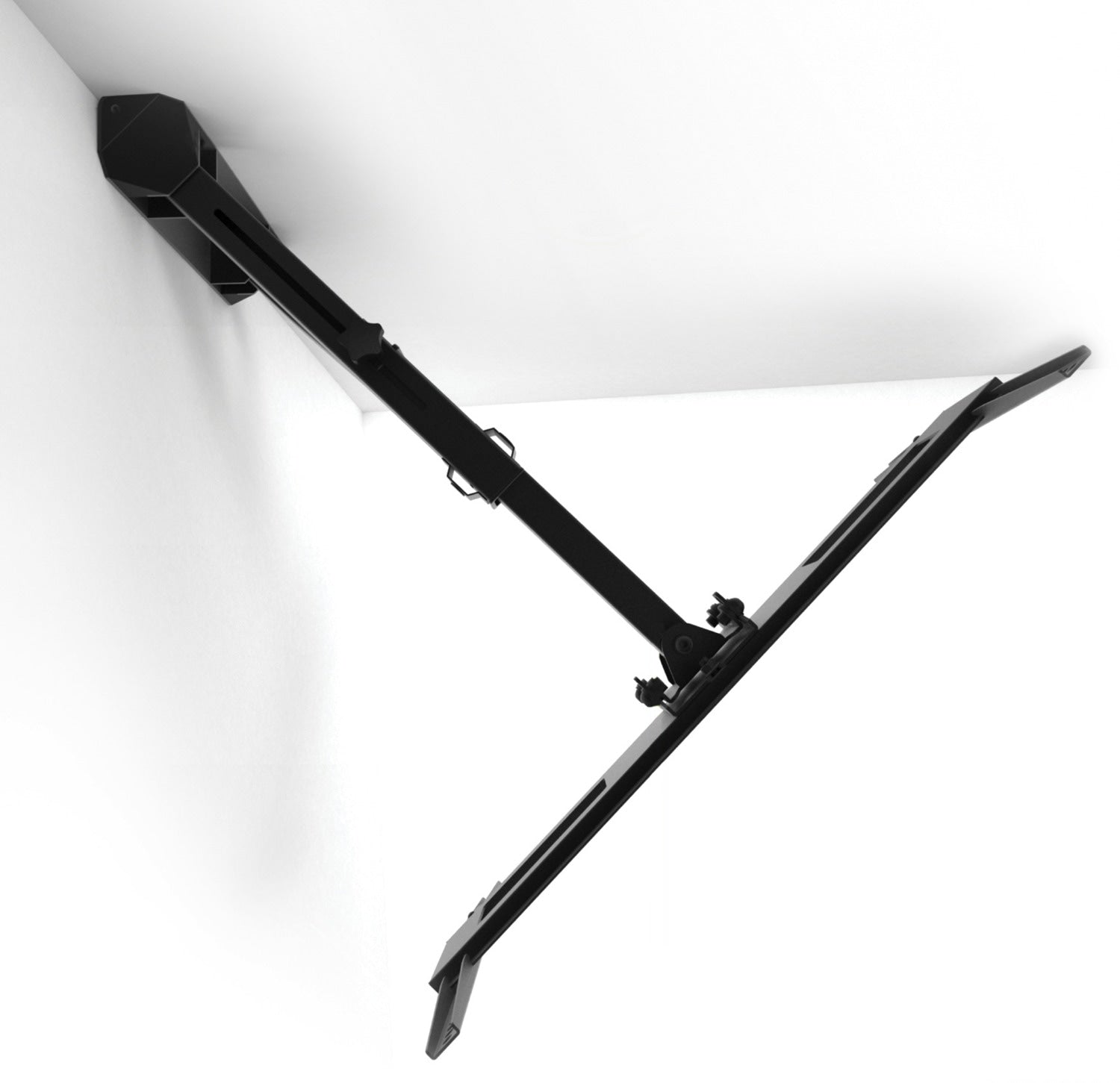

Simple Corner Installation
The FMC1’s 90-degree wall plate can be easily mounted in the corner of any concrete or wood stud wall.

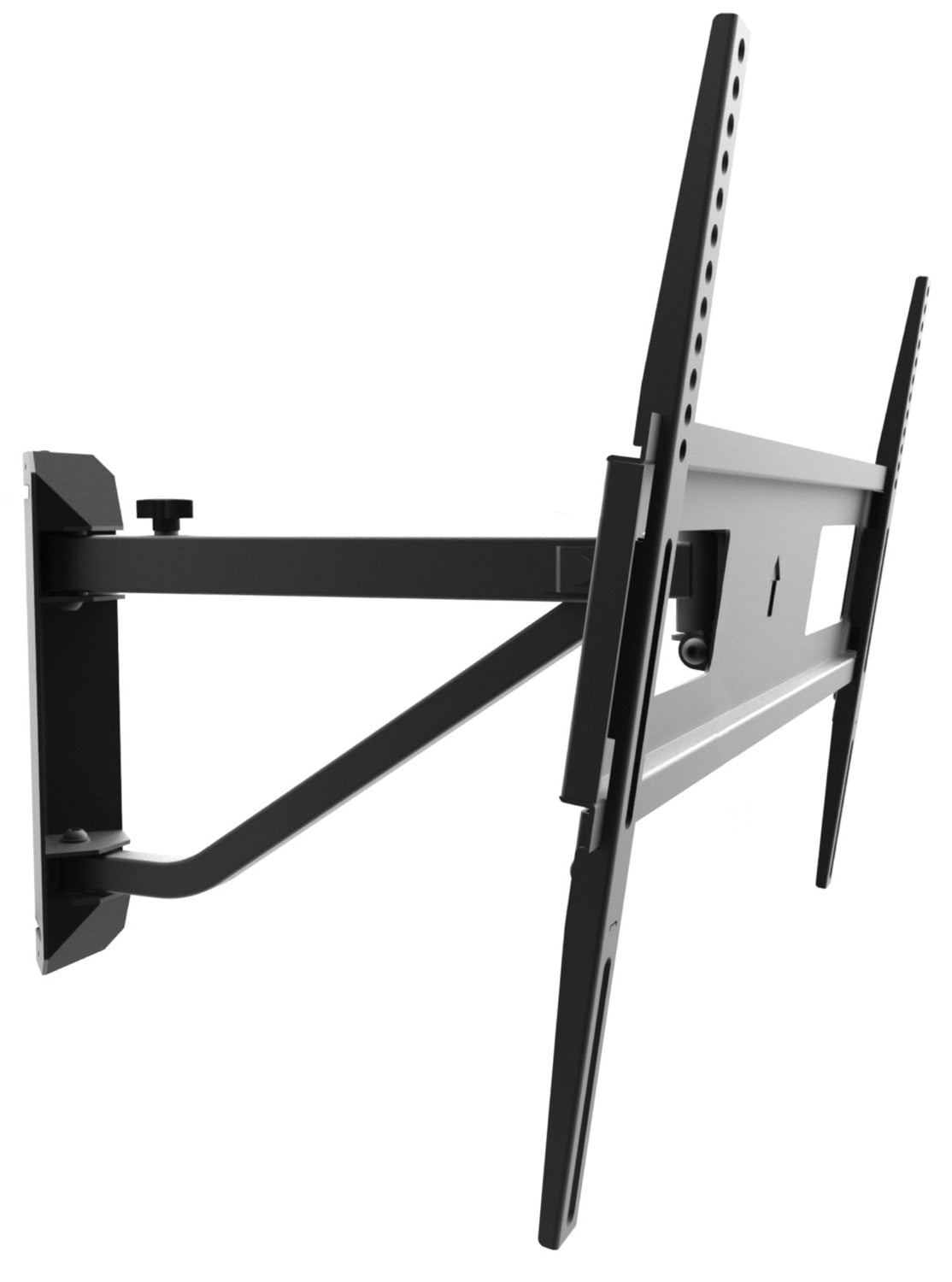

Telescoping Arm
Use the telescoping support arm to ensure a proper fit for TVs measuring up to 60 inches.

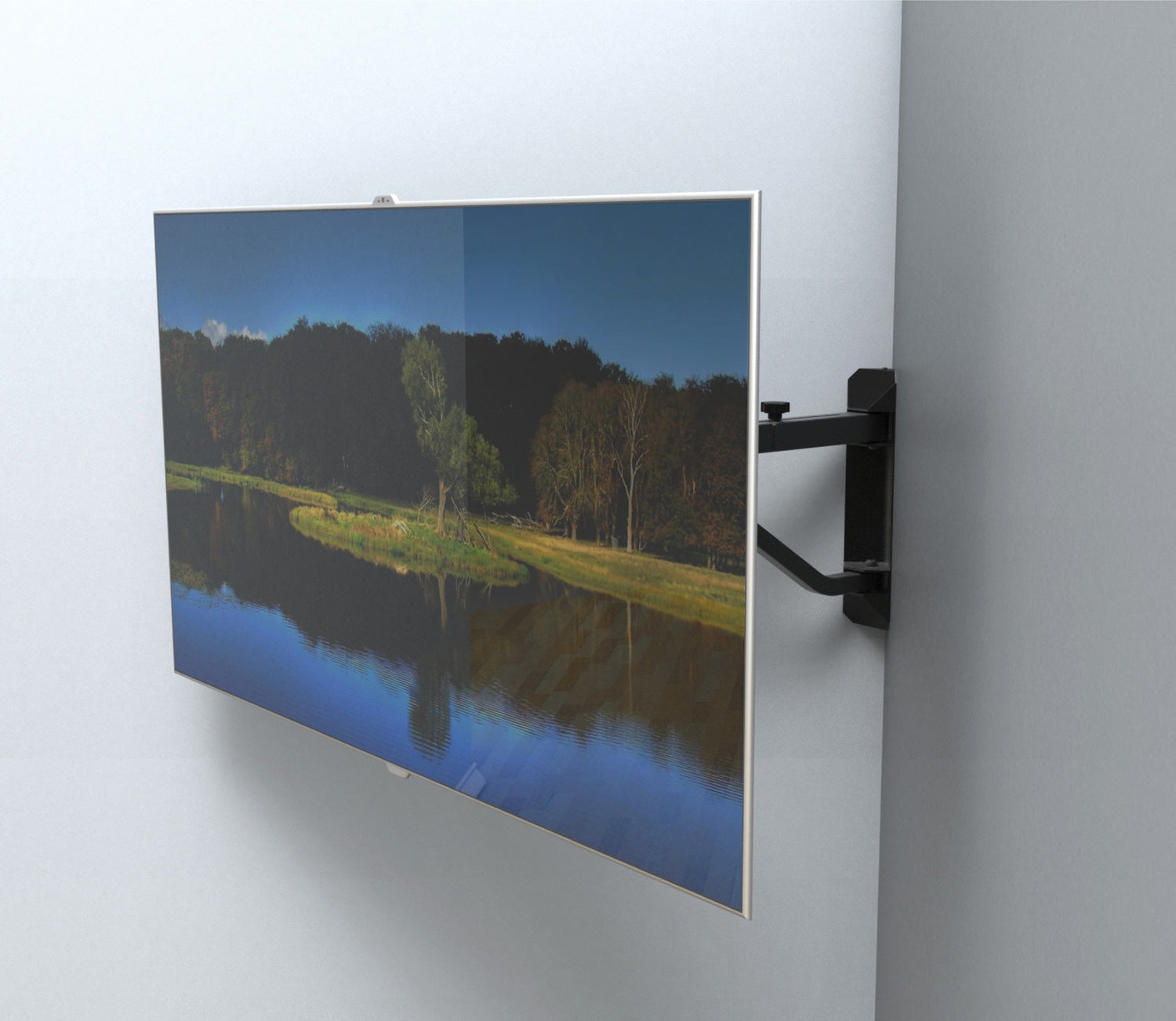

Swivels Left and Right
Swivel your TV left or right for a better viewing angle, or to place it against adjacent walls.
16 Degrees of Tilt
The FMC1 tilts 10 degrees forwards and 6 degrees backwards to reduce glare and improve line-of-sight with your TV.
Full Features and Specifications:
- Fits most flat panel TVs from 40" to 60"
- Supports TVs up to 88 lb. (40 kg)
- Accommodates VESA sizes from 100 x 100 to 600 x 400
- Accessible tilt mechanism provides a +10°/-6° tilt angle
- Sits 3.3" (8.3 cm) from adjacent walls
- Extends 20.4" (51.7 cm) to 29.8" (75.7 cm) from the corner
- Integrated cable management
- Solid steel construction with durable powder coated finish

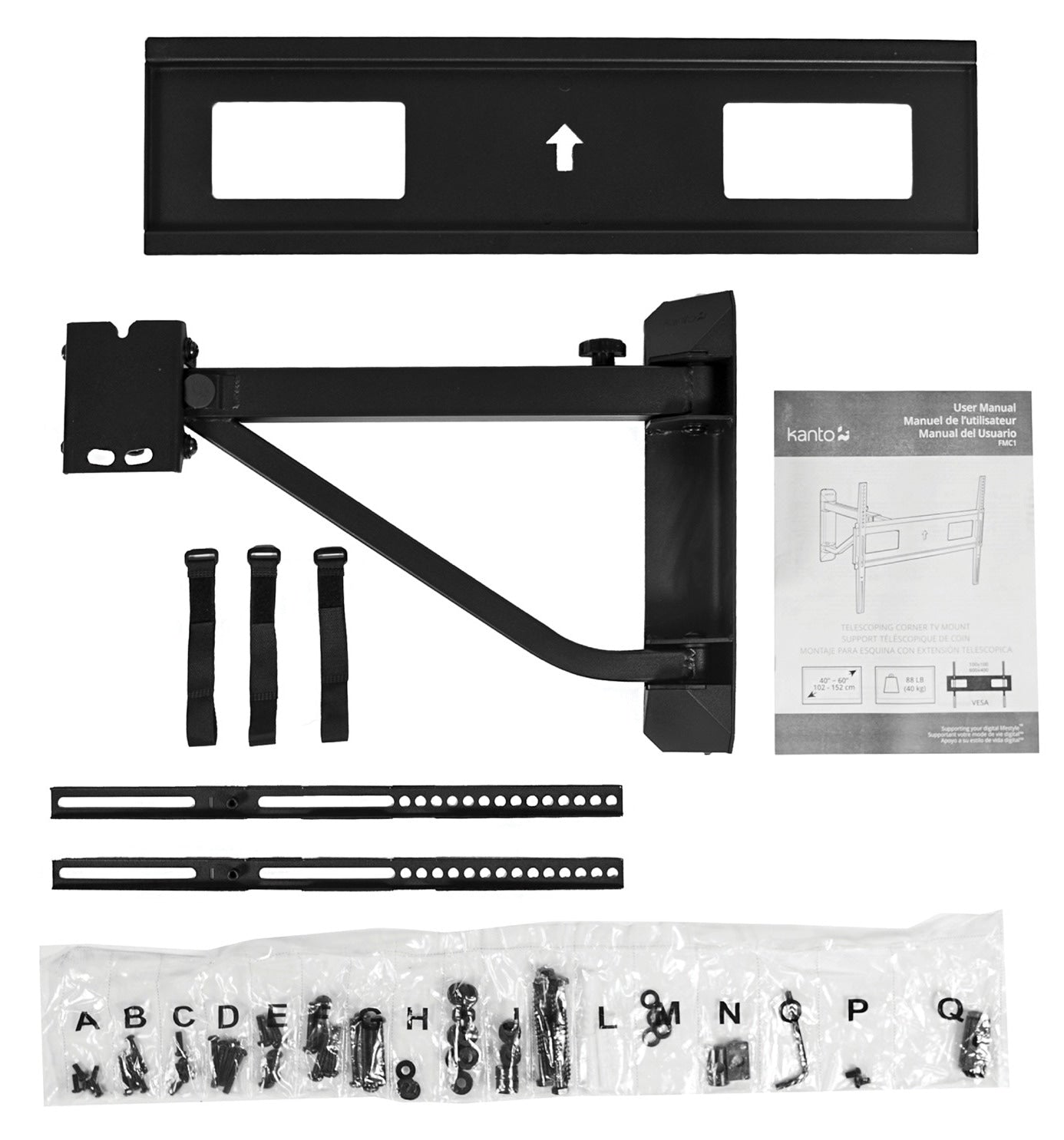

- Installation manual and all mounting hardware for wood studs and concrete installation is included
- Product weight: 17.2 lb. (7.8 kg)
