Dimensions
Width: 36" (91.4 cm)Height: 37" (94.0 cm)Depth: 27.3" (69.3 cm)
Shipping Dimensions
Width: 40" (101.6 cm)Height: 45.6" (115.8 cm)Depth: 30" (76.2 cm)
Weight
309.00 lbs (140.1 kg))
Manufacturer's Warranty
1-Year Limited Parts and Labour
Unique Features |
---|
|
General Details | |
---|---|
VSN | UGP-36CR W |
UPC/GTIN | 680309003058 |
Appliance Features | Convection, Storage Drawer |
Fuel Type | Natural Gas |
Finish Colour | Marshmallow White |

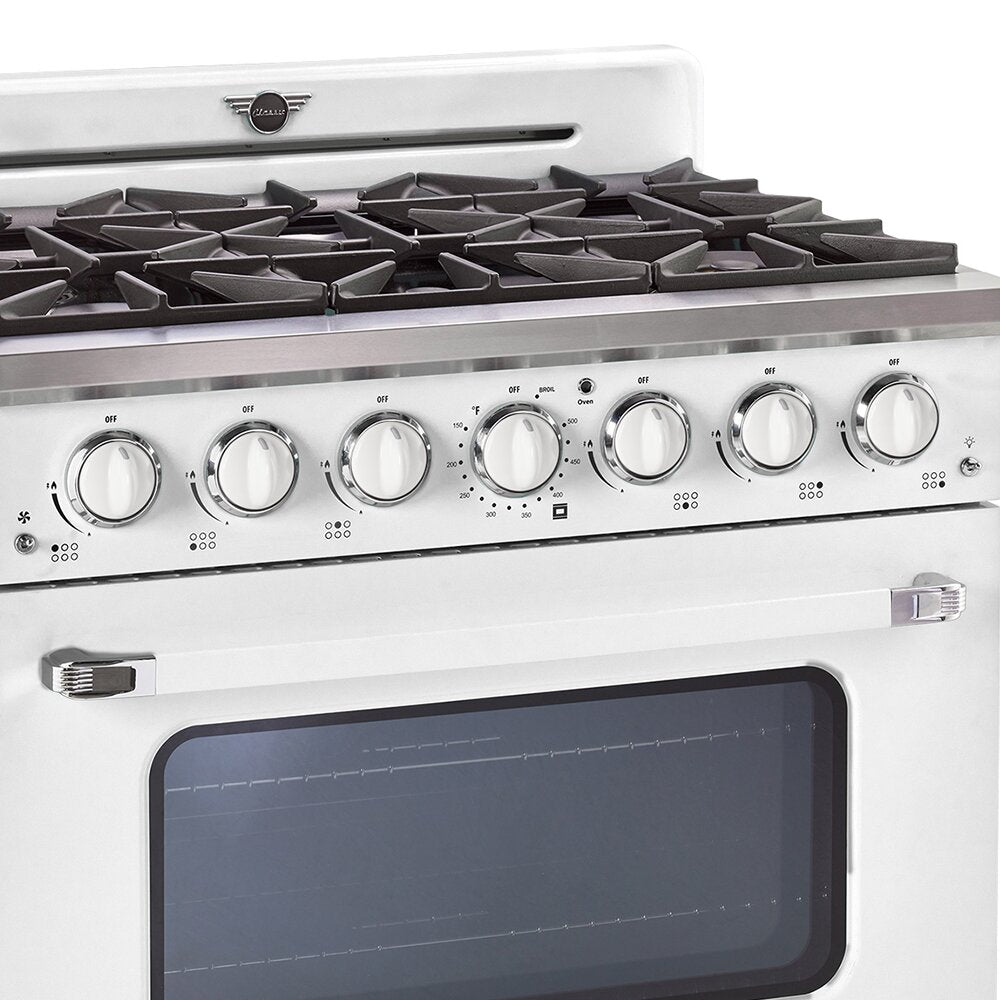

Control Panel | Front-Control |
Energy Consumption | 120V |
Levelling System | Levelling Legs |
This Product Includes | LP Conversion Kit |
Cooktop Details | |

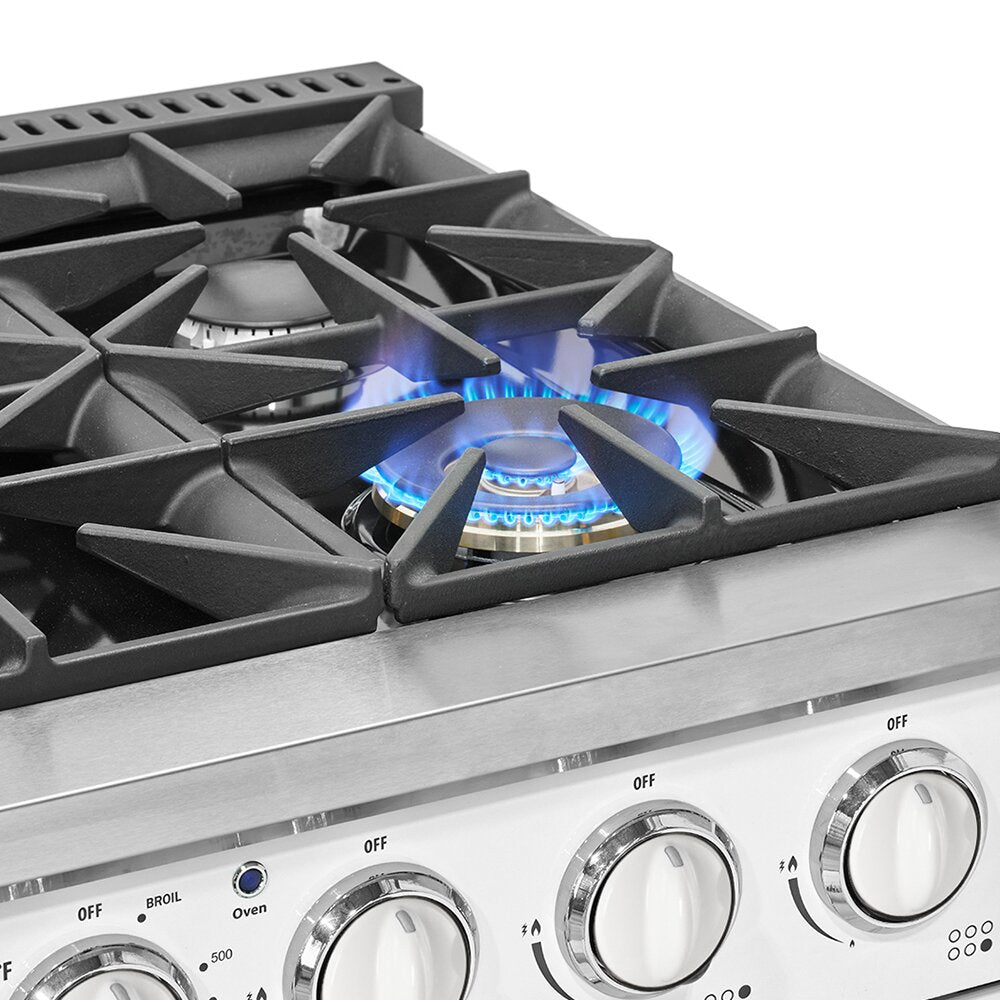

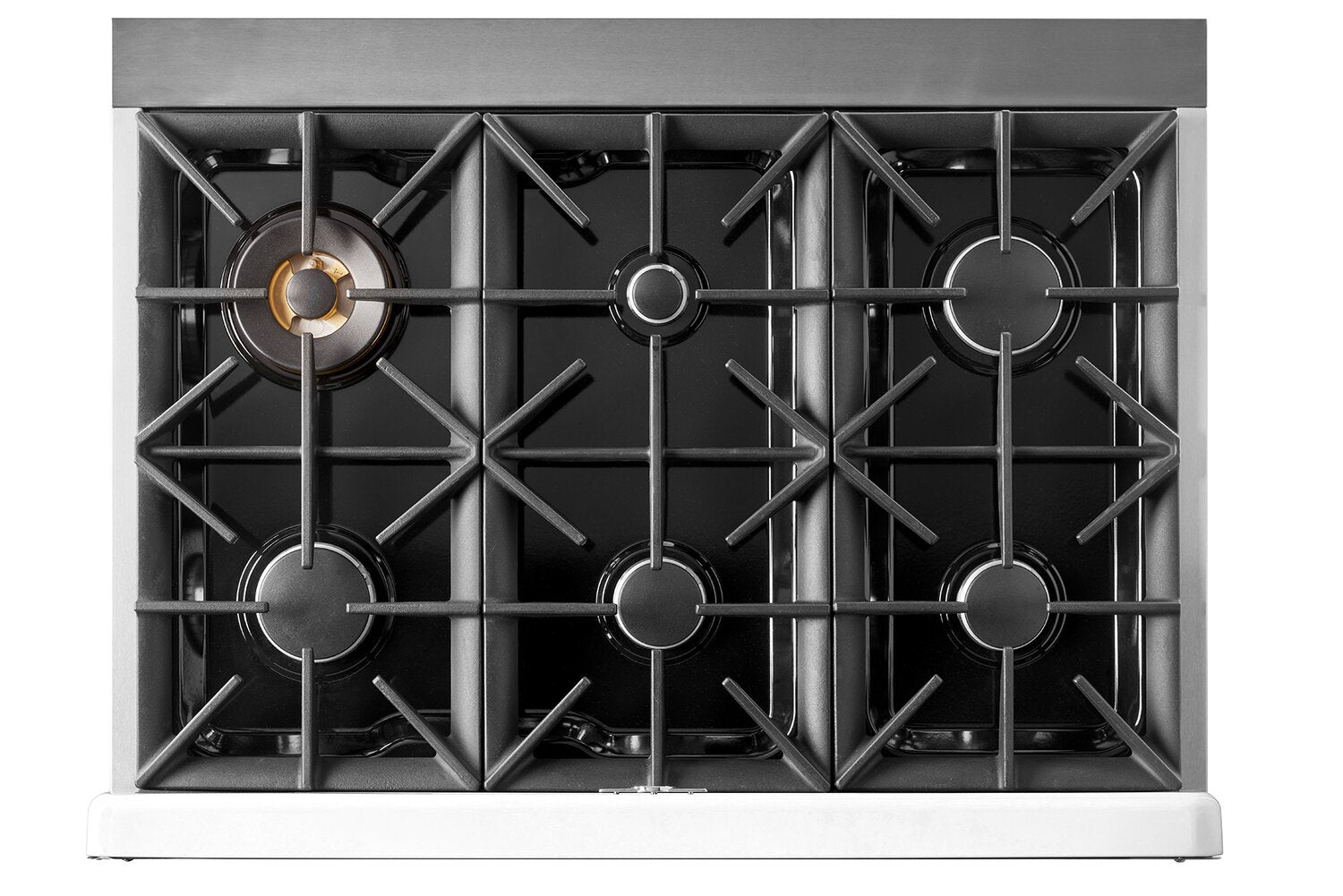

Cooktop Surface | Deep Recessed Burners, Black Porcelain Frame, Sealed Burners |
Cooktop Grates | Continuous, Cast Iron Grates |
Front-Right Burner | 20,000 BTU (Triple) |
Back-Right Burner | 12,000 BTU |
Front-Left Burner | 15,000 BTU |
Back-Left Burner | 9,000 BTU |
Other Burner(s) | Front Middle: 6,000 BTU, Back Middle: 9,000 BTU |
Oven Details | |
Oven Modes | Bake, Broil |
Baking Elements | 22,000 BTU |
Broiler Element | 10,000 BTU |

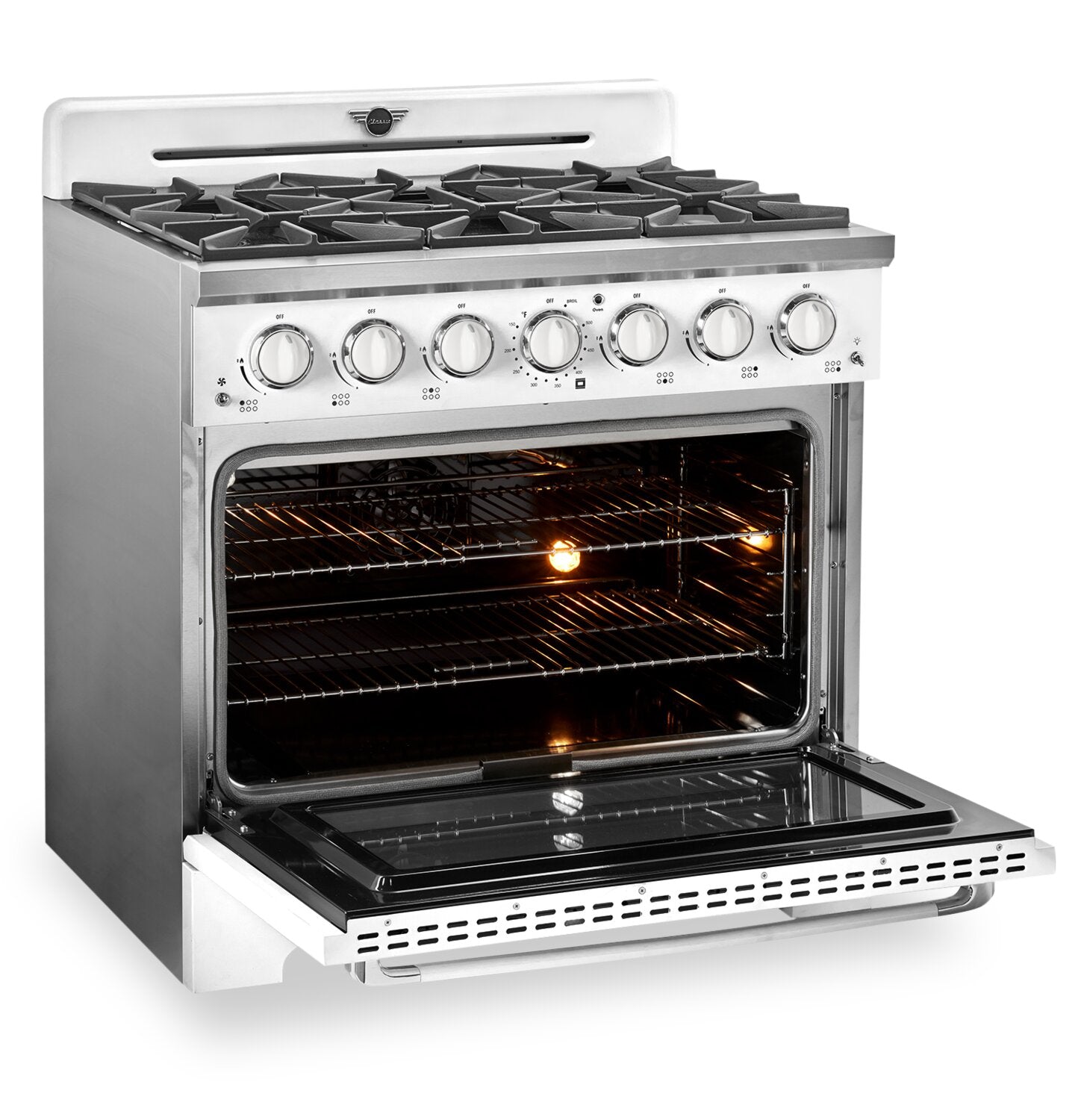

Oven Racks | Two adjustable heavy duty oven racks with four shelf positions |
Lighting | Interior Incandescent (2 x 25 W) |

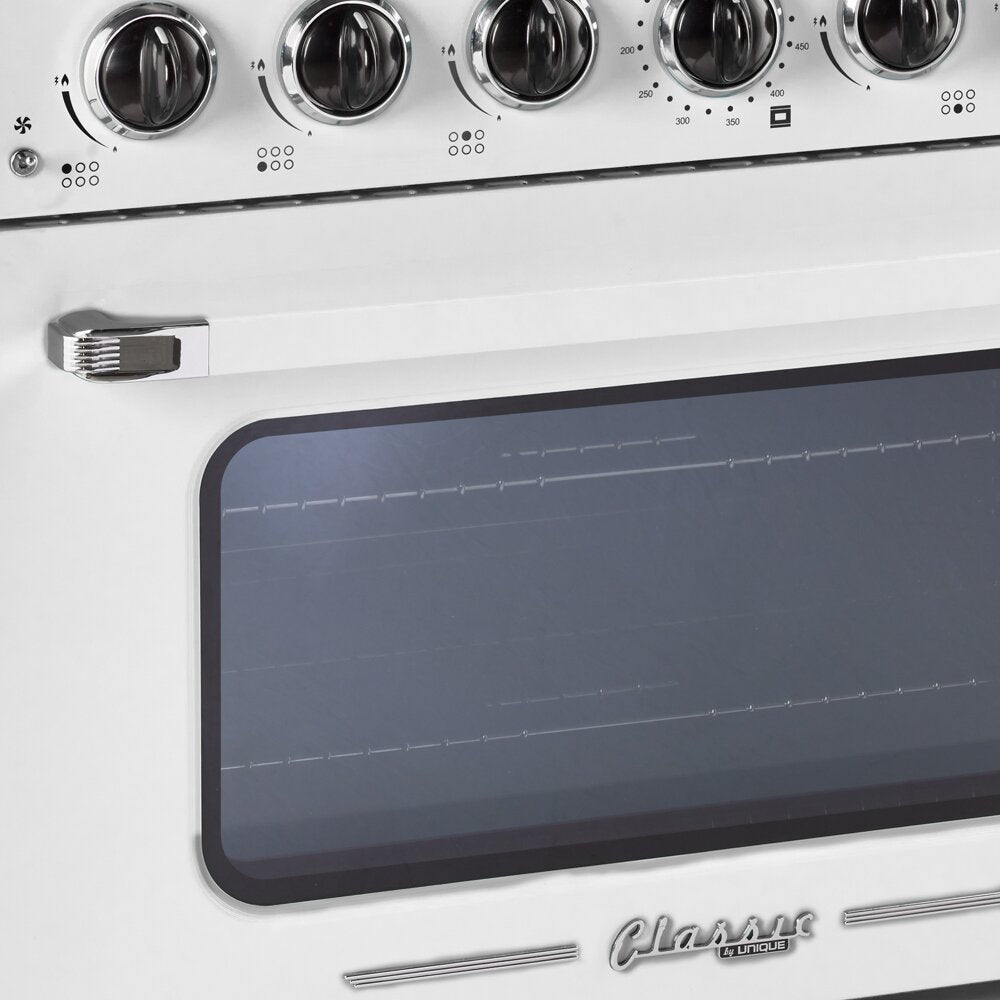

Door | Heavy-Duty Drop Down |
Installation Details | |
Instruction Manual URL | Instruction Manual |
Additional Details | |
Certification(s) | ETL Certified |
Manufacturer's Warranty | 1-Year Limited Parts and Labour |
Additional Dimensions | |
Depth with Door Open 90 degrees (in.) | 44.25 |
Cord Length | 6ft (1.8m) |
