Broan 30" Built-In Power Pack Insert - BBN2303SS

SKU: BBN2303S

$449.00

Maximum quantity available reached.

View In Showroom

Book an in-store appointment

REVIEWS

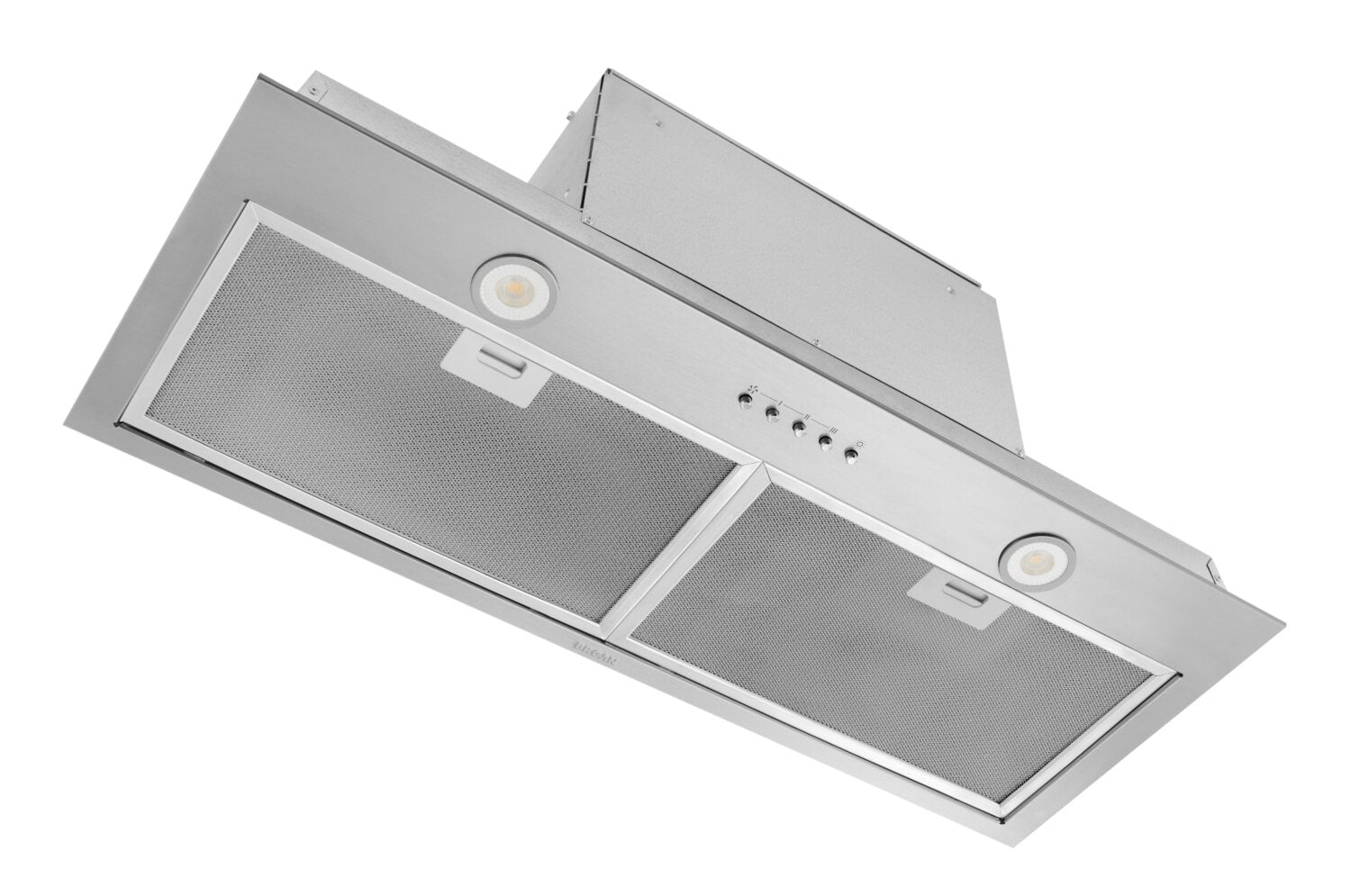

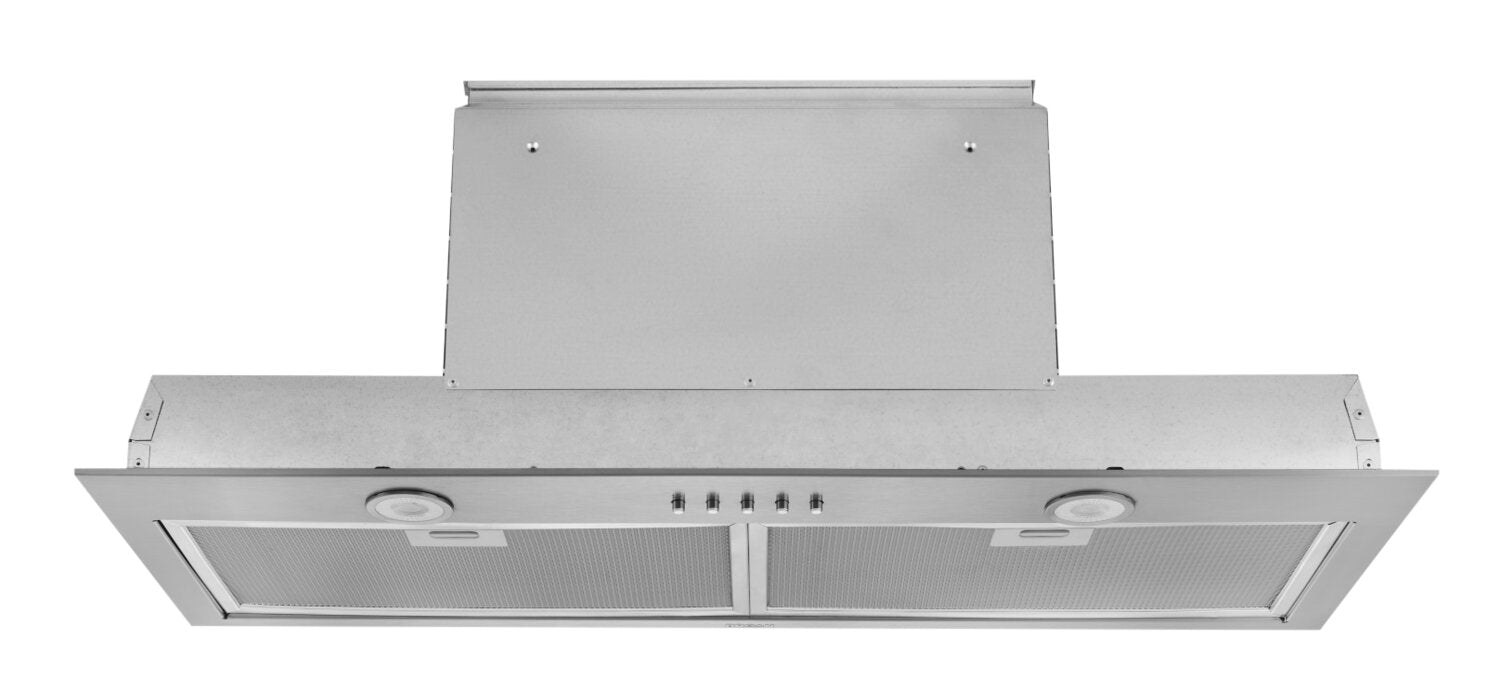

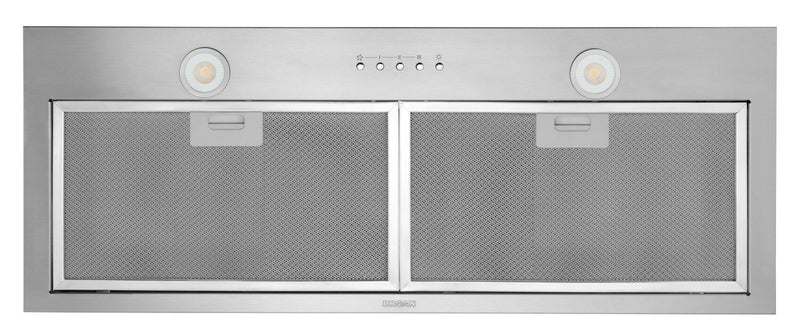

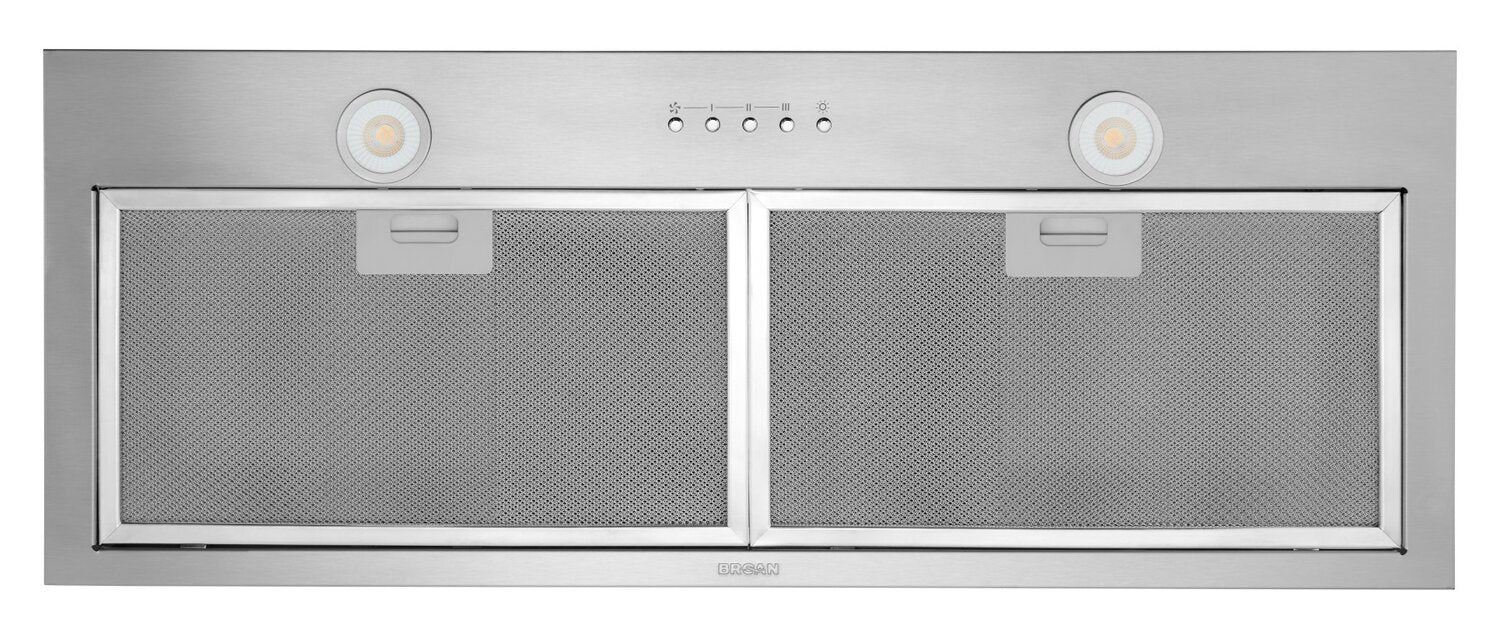

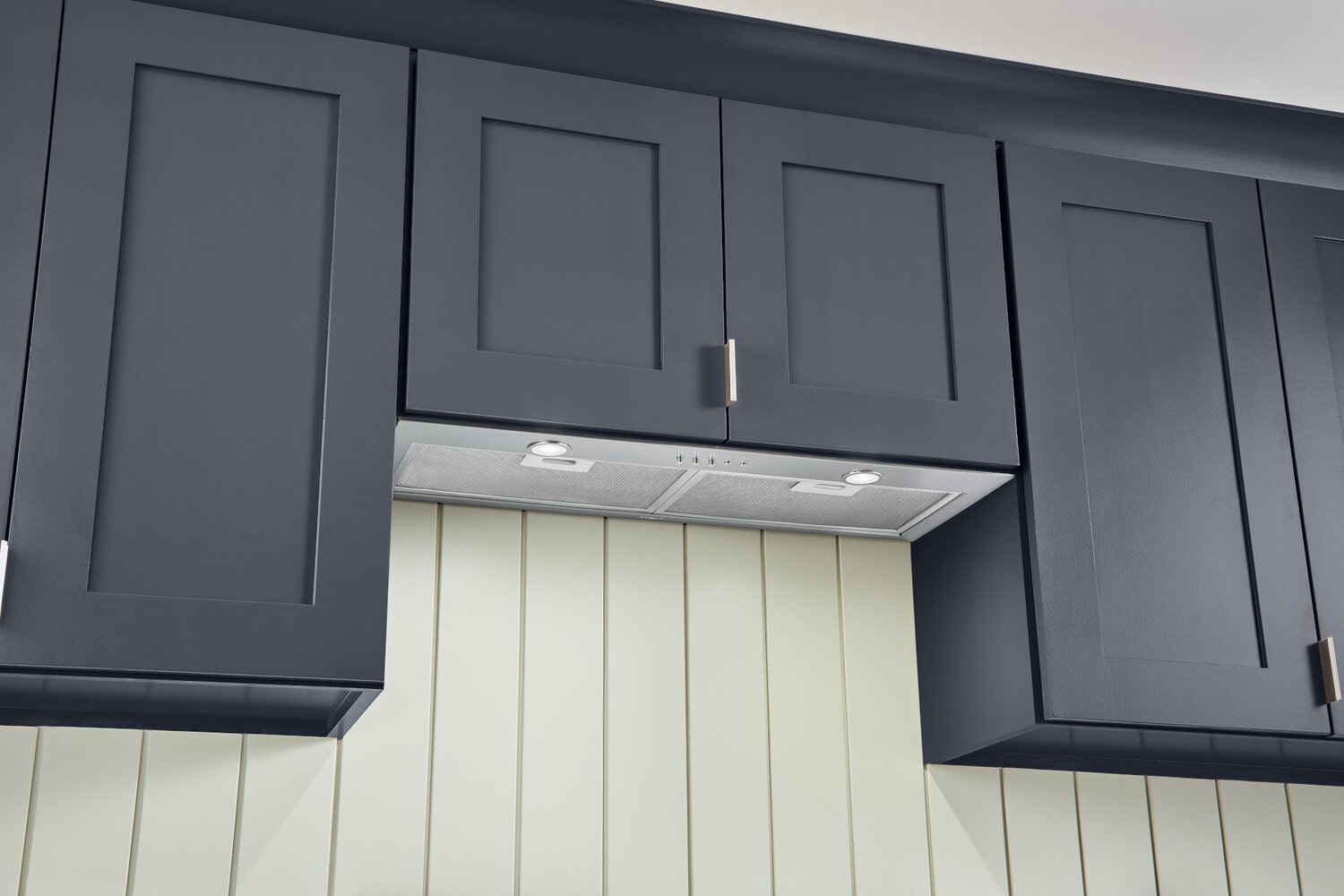

Keep your smoke alarm silent with this power pack insert from Broan. With 350 cubic feet per minute (CFM) of venting power and three fan speeds to choose from, smoke and odours are easily cleared away. Plus, Heat Sentry™ automatically sets the speed to high when excessive heat is detected to take the guesswork out of your cooking experience. This insert fits into the underside of your cabinet for a flush appearance, while the smooth stainless steel finish and dishwasher-safe filters make it easy to keep clean.

Dimensions

Width: 29.875" (75.9 cm)Height: 10.56" (26.8 cm)Depth: 11.437" (29.0 cm)

Shipping Dimensions

Width: 32.796" (83.3 cm)Height: 13.65" (34.7 cm)Depth: 15" (38.1 cm)

Weight

23.80 lbs (10.8 kg))

Unique Features

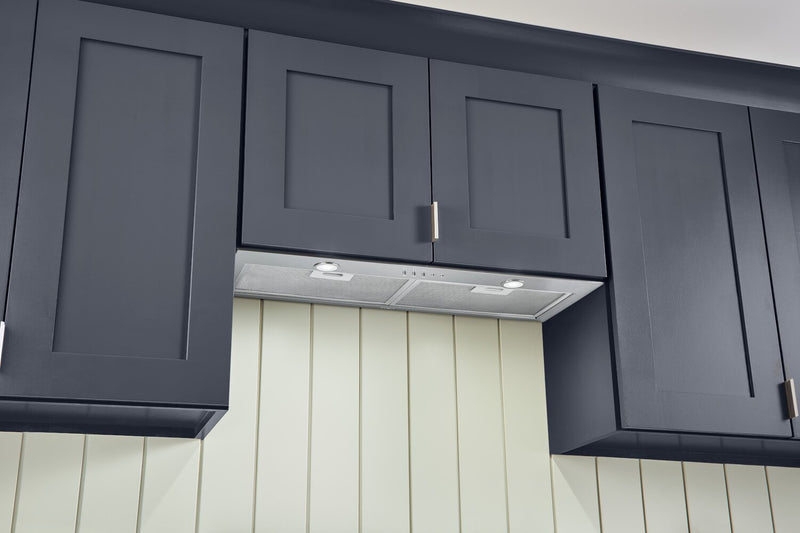

Clean Style: The integrated, one-piece design of this insert protects the full underside of your cabinetry with a flush appearance and depth adjustability. Efficient Blower: With a max blower speed of 350 CFM, three fan levels and a volume of only 1 sone at normal operation, this insert can clear your kitchen air without interrupting your family’s conversations. Dishwasher-Safe Filters: Keep these grease-capturing filters at the top of their game by simply placing them in the dishwasher for a thorough cleaning. One-Level Lights: Bright LED lighting evenly illuminates your cooktop and is tested in cooking environments to ensure a long life without dimming. Heat-Sensing Technology: Heat Sentry detects excessive heat and adjusts the blower speed to high automatically to keep your environment safe. Multiple Ducting Options: Installing this hood is much easier thanks to three ducting options – a 3.25 by 10-inch horizontal or vertical and six-inch round vertical option are possible with the included adapters. Adjustable Design: The included liner extension accommodates cabinets up to 13 inches deep, while larger extensions are available (sold separately) to fit cabinets up to 15 inches deep.

General Details
VSN	BBN2303SS
UPC/GTIN	026715267781
Finish Colour	Stainless Steel
Overhead Lighting	1-Level LED

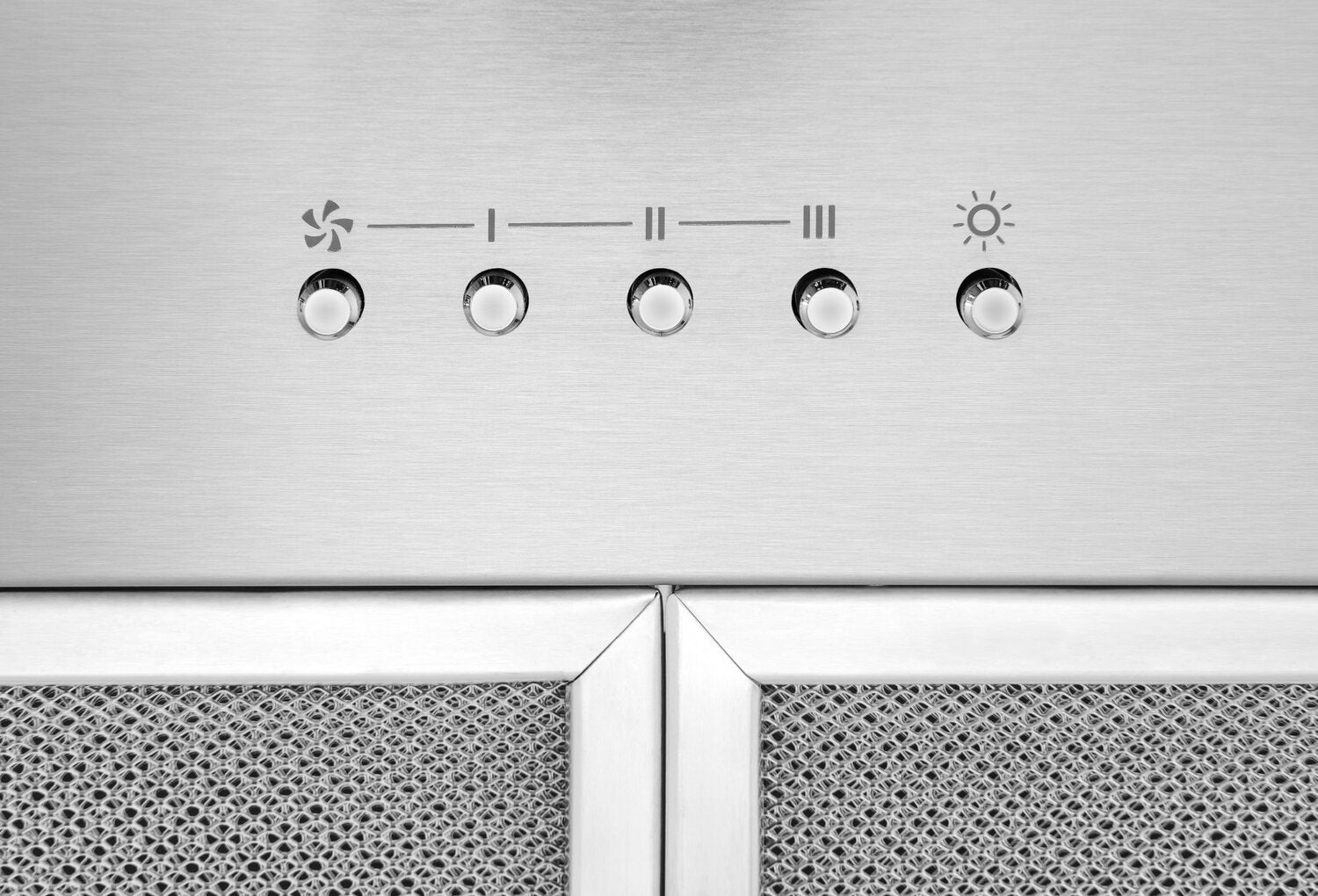

Control Panel	3-Speed Push Buttons
This Product Includes	2 LED Modules, EZ1 Installation Clips
Power Details
Exhaust Power (CFM)	350
Ventilation Type	Vertical, Horizontal, Recirculating

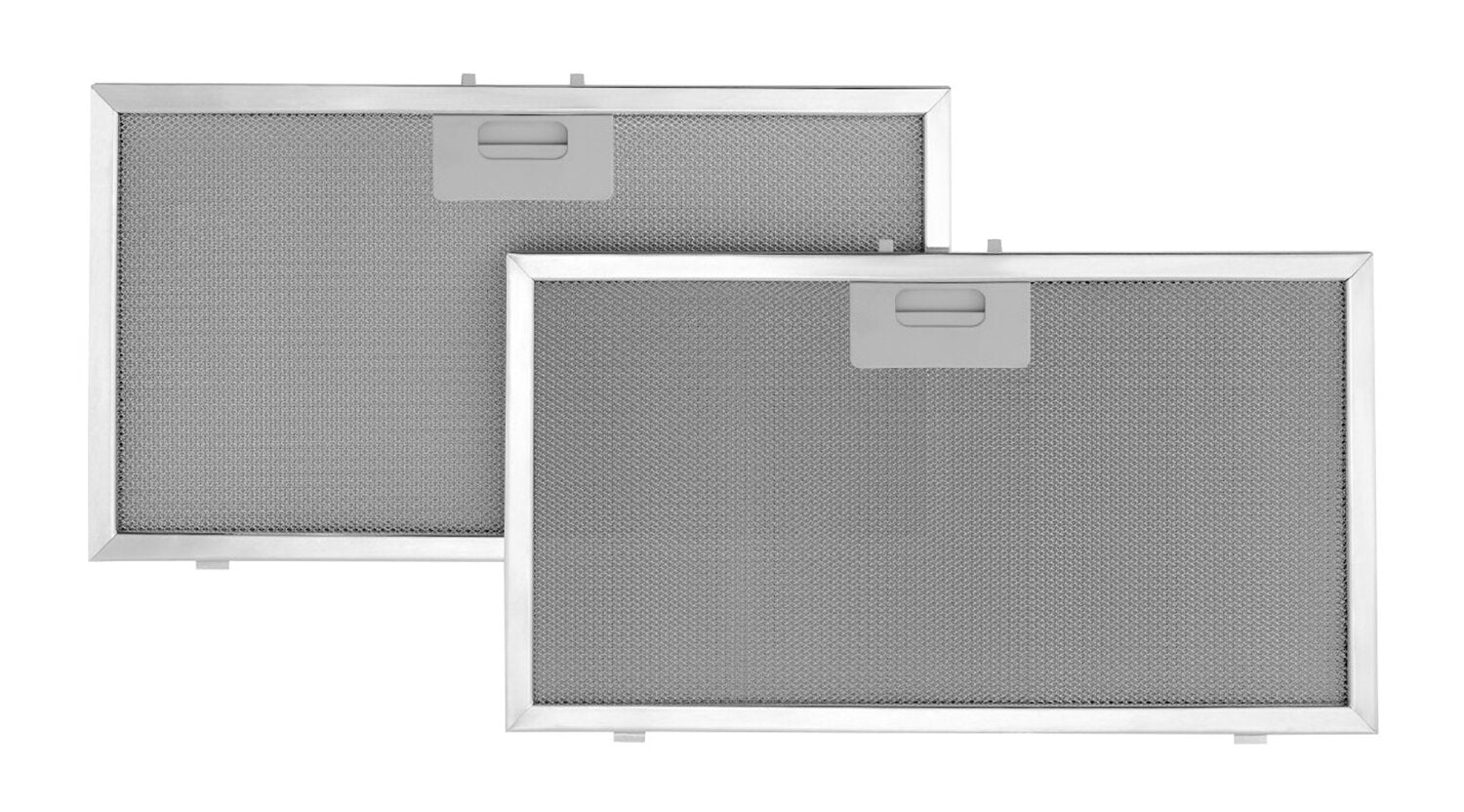

Filtration Type	Aluminum Mesh Filters
Installation Details
Installation Requirements	Leave 24 to 30 inches between cooktop and bottom of hood.
Sold Separately	Replacement Grease Filters: S99010400-130 Charcoal Filters for Non-Ducted Installation: S99010464-130 15" Liner Extensions (Set of 4): HADTBN30 Non-Ducted Installation Kit: HARKBN30 Hybrid Baffle Filters: HPFBN30 Make-Up Air Dampers: MD6TU, MD8TU, MD10TU Fresh Air Inlets: 641FA, 643FA, 610FA
Additional Details
Additional Information	Volume (Sones) by Ducting Type: Vertical - Rectangular: Normal: 1 / Medium: 2 / High: 3.5 Horizontal - Rectangular: Normal: 1 / Medium: 1.5 / High: 3.5 Round - Vertical: Normal: 1 / Medium: 2 / High: 4
Additional Dimensions
Other Dimensions	Duct Outlet Size: 6" Round, 3.25" x 10" Horizontal / Vertical
