Dimensions
Width: 39.5" (100.3 cm)Height: 15" (38.1 cm)Depth: 21.87" (55.5 cm)
Shipping Dimensions
Width: 24.6" (62.5 cm)Height: 24.6" (62.5 cm)Depth: 47.5" (120.7 cm)
Weight
90.00 lbs (40.8 kg))
Manufacturer's Warranty
Parts and Labour: Limited 1-Year
Unique Features |
---|
LED Hood Light: Heat Sensor: 1,220 CFM Range Hood Blower: Built-In Wi-Fi: ADA Compliant: Baffle Filters: Chef Connect: Backlit Push Button Controls: 4-Speed Fan: Night Light Setting: |
General Details | |
---|---|
VSN | UVC9420SLSS |
Appliance Features | Smart Capable |
Finish Colour | Stainless Steel |
Overhead Lighting | Cooktop LED (On, Off, Night Light) |

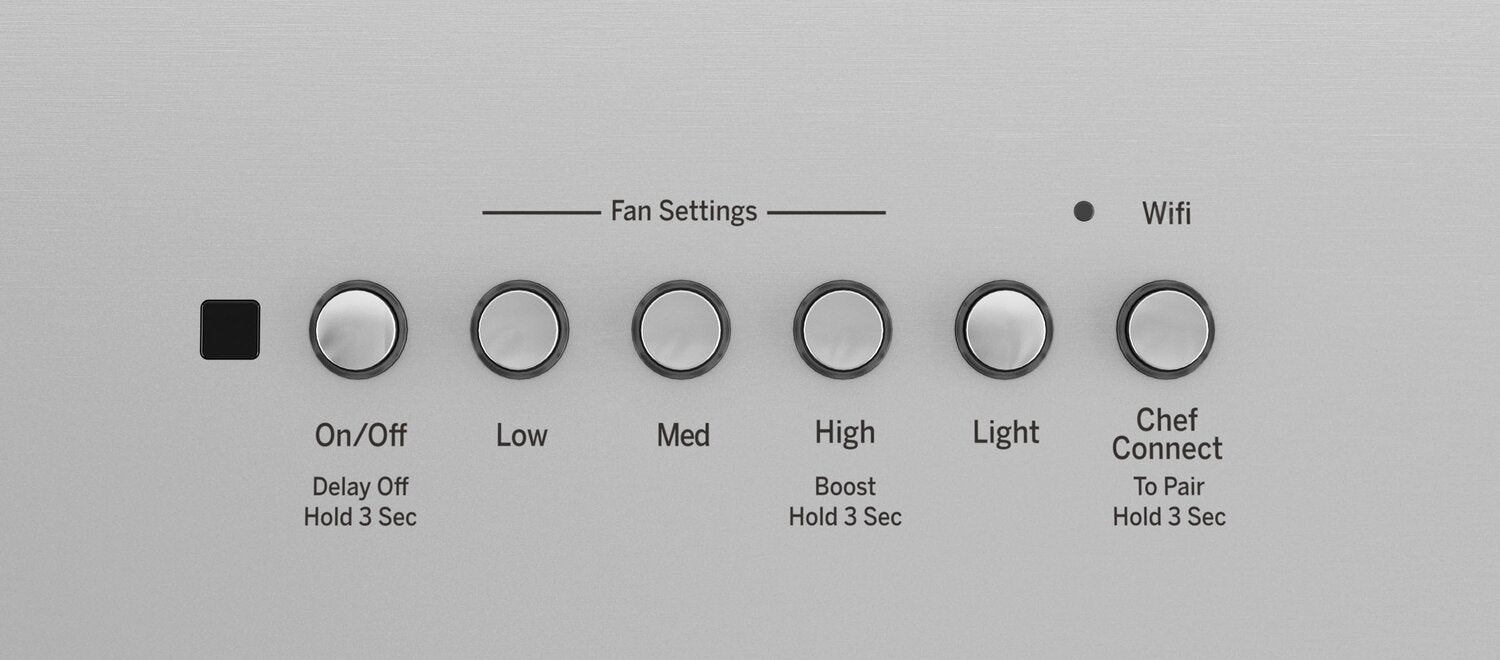

Control Panel | Backlit Push Buttons |
Power Details | |
Motor Details | Dual Blowers |
Exhaust Power (CFM) | 780 |
Installation Details | |
Installation Requirements | This hood is secured to the custom cabinet from both sides through eight screws. Two 2x4 studs separated by 39 inches must be provided on the custom cabinets for installation. |
Sold Separately | Power Cord Kit: JXHC1 |
Instruction Manual URL | Instruction Manual |
Additional Details | |
Technology Features | Wi-Fi Connectivity |

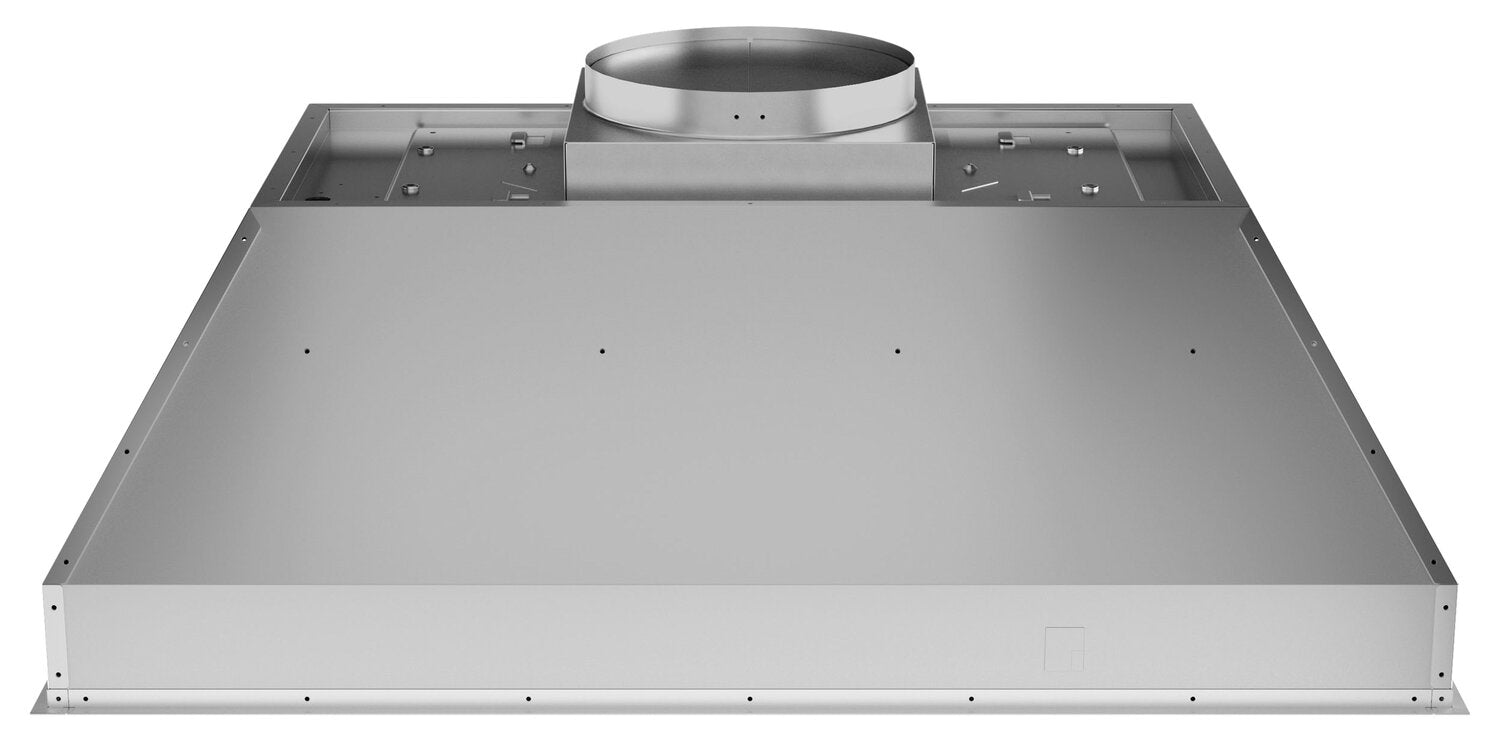

Additional Information | Required Duct Size: 10" Round |
